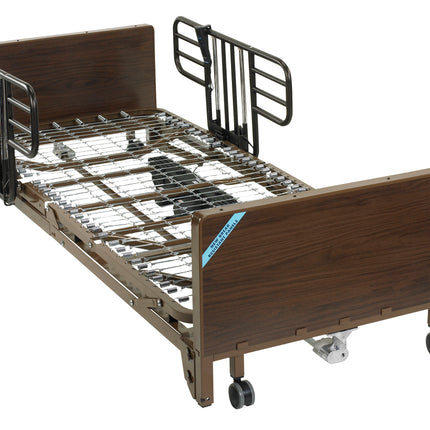

Delta Ultra Light Full Electric Low Hospital Bed with Half Rails

Drive DeVilbiss Healthcare

Delta Full Electric Low Hospital Bed with Half Rails

SKU : 15235bv-hr
You save 0% or $0
free shipping

  • The motor assembly can be installed and removed with patient in bed
  • Bed frame can be used with Drive's and most other manufacturers' bed ends, old and new
  • The transition box mounted on the foot section is key to interchangeability
  • The transition box allows you to change the rotation of the high/low shaft
  • Headboard is taller than footboard to better fit home decor
  • The wood grain panels are break and scratch resistant
  • Once installed, the high/low shaft will stay with the bed to eliminate loss or forgetting on future installations
  • Labels and color-coded springs assure accurate installation of side rails for patient safety
  • Unique motor is completely self-contained to reduce weight and noise
  • Easy to set up
  • Top mounted Hi/Lo crank accessibility
  • Height-adjustable motor comes pre-installed on the foot section
  • Caster easily moves from standard to low bed position
  • Bed, side rails, and mattress safety-tested by SGS, a nationally recognized testing facility; Satisfies all applicable FDA entrapment guidelines
  • The motor is UL approved|In the event of a power failure, a 9V battery, located in the hand control, can lower the head and foot sections nine times
  • New and improved hand pendant has large, easy-to-use controls
  • Hand crank located on the top of the footboard prevents bending for the caregiver when in the low position
  • Channel frame construction provides superior strength and reduced weight
  • Zinc-coated spring deck
  • Weight Capacity 450 lbs
  • Actual Product Weight: 167 lbs
  • Batteries: 1 - 9V
  • Bed Height (Max): 20.5"
  • Bed Height (Min): 9"
  • Bed Height w/ Casters (Max): 23.5"
  • Bed Height w/ Casters (Min): 12"
  • Casters: 3"
  • Foot Section Height (Max): 31.5"
  • Foot Section Height (Min): 20"
  • Foot Section Height w/ Casters (Max): 34.5"
  • Foot Section Height w/ Casters (Min): 23"
  • Footboard Height (Max): 32.5"
  • Footboard Height (Min): 21.5"
  • Footboard Height w/ Casters (Max): 35.5"
  • Footboard Height w/ Casters (Min): 24.5"
  • Ground Clearance: 0.5"-12"
  • Ground Clearance w/ Casters: 3.5"-15"
  • Head Section Height (Max): 44.75"
  • Head Section Height (Min): 33.25"
  • Head Section Height w/ Casters (Max): 47.75"
  • Head Section Height w/ Casters (Min): 36.25"
  • Headboard Height (Max): 35"
  • Headboard Height (Min): 24"
  • Headboard Height w/ Casters (Max): 38"
  • Headboard Height w/ Casters (Min): 27"
  • Motor: 15037MN (Head and Foot)
  • 15033MHLN-MGBA (Hi/Low)
  • Overall Product Height: 24"
  • Overall Product Length: 88.625"
  • Overall Product Width: 34.75"
  • Primary Product Color: Brown
  • Primary Product Material: Steel
  • Product Weight Capacity: 450 lbs
